For Sale

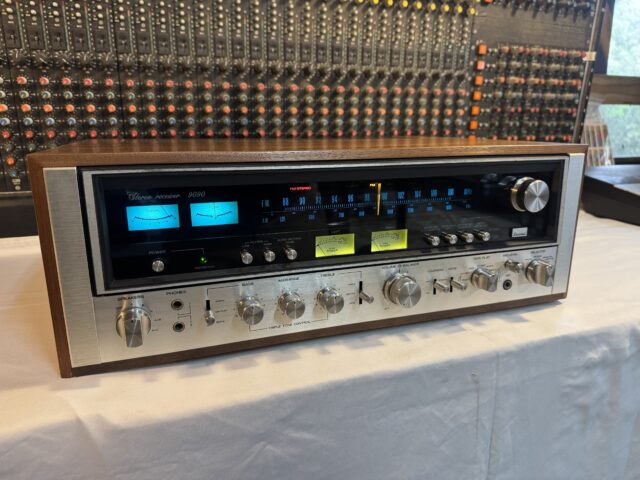

Sansui 9090  $1225 – sold

20160530_131350

Another 9090 that we have completely restored, recapped, and added our Differential Current Balance modification.   When we got it, one of the channels had the outputs blown, so we replaced all 8 output transistors for both channels.

20160530_132139

It is indeed in excellent condition.

20160530_135051

The output driver board has had all fusible resistors replaced, the differential pair in each channel replaced, and of course the already mention Differential Current Balance mod.

20160530_132132

You can read about the mod on our site, here.

20160526_163423

The 9090, especially the way we restore it, is just about the best stereo receiver made in Japan during the Golden Age of Stereo, the 1970’s.

20160530_135035







Sansui Eight $850 – sold

20160607_155041

This is about the nicest condition Eight we have ever seen.  It belongs to the gentleman who owned the QRX999 with QBL down the page here.  He has asked us to sell it for him.

20160607_155110

The wood cabinet, front panel, everything about it is near perfect.

20160607_155114

We have done everything that we can to this unit.  I has been completely recapped,  the driver boards rebuilt, and our Differential Current Balance mod added.

Since we published the proper method for adjusting the Eight driver boards on Audiokarma, we have been getting a lot of these in for restoration.  Properly adjusted with our diff mod added, the amplifier in these is about as musical sounding as any amplifier made by Sansui.

20160607_155050

The amplifier is the same design as in the AU999, which makes sense, as they were the top of the line models during the same period of time.

20160607_155102

The story behind the Eight is a very interesting one.  The Eight is the legendary top of the line unit that Sansui made back in 1969.  Before that Sansui had the 5000 as its top of the line, and there had been a problem with those models.

20160607_154850

Seems they got a batch of bad resistors that went on the amplifier boards in the 5000.  Sansui designs their amp boards with something called fusible resistors.  They act as resistors, but if something goes wrong, as can happen with amplifiers, they are supposed to quickly burn out, acting as a fuse.

20160607_155134

Well, somehow this batch of resistors would burn out like they were supposed to, only, they would burst into flames while doing it, make a lot of smoke and an ugly blackened area on the board.

Having an amplifier that bursts into flames, even if it’s just a small fire totally contained on the board, was very embarrassing for Sansui.  There was a lot of “making fun of” in the Japanese electronics press, and Sansui felt very motivated to save face.

They put on their best engineering determined look, and designed the Eight.  It was going to be the best Receiver ever, and a big leap forward for Sansui.  In reality it turned out to be a good thing, as the Eight was a big leap forward for Sansui, and the rest of the industry, who had to keep up.  Sansui sold a lot of Eights.  Even the name was innovative.

It’s way over designed, and if you open it up to work on it, you see engineering innovations you don’t see anywhere else, ever, both mechanically, and in circuit design.  Many of these design features were then incorporated in later gear, not just by Sansui, but the whole industry.

One of the things about the amplifier section that was totally new, and never done since, was this:  Sansui made some of the amplifier parameters adjustable.  Dialing in these parameters to the absolute right setting allowed the amp to perform at its lowest distortion point, and best slew rate.  Normally, off the production line, things vary a bit.  These adjustments made every amp the same.  It did make a difference in sound quality, but…

They didn’t describe how to set these adjustments very well, at least in the English version of the Service Manual.  Techs have been scratching their heads over this for years, and a lot of amps, once serviced, were out of adjustment simply because  no one knew how to set them.

Some time ago, we figured out how to easily make the adjustments and have recently put this info up on Audiokarma, the big audiophile news group.  If you’re technical and you wanna take a look, go here.

This Eight does not have the protection relay, but does have fuses on the outputs.  Fuses are the most reliable speaker protection there is, as they always work.  This is more than adequate to protect the outputs and driver section.





Sansui QRX999 with QBL Mod and remote  $2925- sold

This was the first of several we restored for him, very recently, and he’s now asking us to sell it.  This is just about the finest QRX999 to go through our shop.  The QBL mod has been added, and a very nice condition (new and unused in box) QBL.  It has virtually every upgrade that we do.

20160421_115320

Front View

20160421_114753

Left Panel

20160421_114800

Right Panel

20160421_114640

Top View

20160421_114635

Right Side

20160421_114732

Left Side20160421_114030



Internal View, no corrosion.

20160421_115107

Rear View. Note the QBL socket next to the AM antenna.

20160422_090029

The QBL, a remote from the early 70’s, originally made for the QRX55/7500.  Quite a rare piece.  Very solidly made with the hefty feel of quality.

Here’s a list of the work done to this QRX

Complete recap, 174 electrolytic capacitors changed out for new
Audio grade caps used in signal path
The big power supply caps have been increased from 10,000uf to 15,000uf, giving a total of 60,000uf.
A 12uf Poly cap was added across the supply, making it very stiff, even at high frequencies.
A 25v regulator was added to the quad processing board supply, for safety, in case of AC line problems.
All fusible resistors have been replaced.
The amp driver boards have received our total rework, where we change over 34 parts on each board.
Our proprietary Differential Current Balance modification was done to the amp driver boards.  This modification increases sonic detail, imaging, and musicality, without affecting the Sansui tube like sound character.
The Holy Grail alignment and modification was done to the quad boards.
The 4 channel quad switching board was re-pinned, with wires through the board to traces top and bottom.
FM alignment was done, dial re-calibrated.
The front panel LED modification was done.
All controls were cleaned and lubed with Corrosion X, a treatment which lasts 7-10 years, much longer than the usual De Oxit.  De-oxit will usually require another treatment in  1-2 years.

And of course this QRX has our QBL modification, which allows channel levels to be completely controlled by the very substantial QBL, which was originally designed for the QRX5500/7500.  It is on a 16′ cable, and allows one to sit in a favorite listening position and control the quad balance to all speakers in real time.



Sansui Eight  $750 sold

We haven’t had one of these for sale here before, but we have restored quite a few of them.  this one has quite a story attached to it.  It’s been sitting in the shop in its unrestored state for some time.

009

The Eight is the legendary top of the line unit that Sansui made back in 1969.  Before that Sansui had the 5000 as its top of the line, and there had been a problem with those models.

011

Seems they got a batch of bad resistors that went on the amplifier boards in the 5000.  Sansui designs their amp boards with something called fusible resistors.  They act as resistors, but if something goes wrong, as can happen with amplifiers, they are supposed to quickly burn out, acting as a fuse.

Well, somehow this batch of resistors would burn out like they were supposed to, only, they would burst into flames while doing it, make a lot of smoke and an ugly blackened area on the board.

012

Having an amplifier that bursts into flames, even if it’s just a small fire totally contained on the board, was very embarrassing for Sansui.  There was a lot of “making fun of” in the Japanese electronics press, and Sansui felt very motivated to save face.

014

They put on their best engineering determined look, and designed the Eight.  It was going to be the best Receiver ever, and a big leap forward for Sansui.  In reality it turned out to be a good thing, as the Eight was a big leap forward for Sansui, and the rest of the industry, who had to keep up.  Sansui sold a lot of Eights.  Even the name was innovative.

The cabinet is not perfect as you can see in this picture. This Eight is 47 years old.

The cabinet is not perfect, as you can see in this picture.  This Eight is 47 years old.

It’s way over designed, and if you open it up to work on it, you see engineering innovations you don’t see anywhere else, ever, both mechanically, and in circuit design.  Many of these design features were then incorporated in later gear, not just by Sansui, but the whole industry.

015

One of the things about the amplifier section that was totally new, and never done since, was this:  Sansui made some of the amplifier parameters adjustable.  Dialing in these parameters to the absolute right setting allowed the amp to perform at its lowest distortion point, and best slew rate.  Normally, off the production line, things vary a bit.  These adjustments made every amp the same.  It did make a difference in sound quality, but…

017

They didn’t describe how to set these adjustments very well, at least in the English version of the Service Manual.  Techs have been scratching their heads over this for years, and a lot of amps, once serviced, were out of adjustment simply because  no one knew how to set them.

Some time ago, we figured out how to easily make the adjustments and have recently put this info up on Audiokarma, the big audiophile news group.  If you’re technical and you wanna take a look, go here.

Notice the gear driven flywheel, to increase the flywheel feeling, another first.

Notice the gear driven flywheel, to increase the flywheel feeling of the tuning knob, another first.

This Eight has had a complete recap, a lot of other changed parts, and new output transistors on both channels.  One channel was bad, so we just changed them both.  Also a thorough alignment and setting of all those adjustments.  The Eight has a really sweet sound to it, and about the best low end of any of the early Sansui receivers.  It kicks.

The Eight on the bench setting all the adstments. It takes 5 meaters hooked up just to set one channel. This one sounds very musical, with fantastic low end.

The Eight on the bench setting all the adjustments. It takes 5 meters hooked up just to set one channel. This one sounds very musical, with fantastic low end.



Sansui QRX999  $2475–sold

001

Here’s another one of these European beauties.  We see just a few of these through the shop in a year, so they are pretty rare.

003

This one of course has had all the work done to it that we do with the 9001 series.  I’ll put a list of everything done a little further down.

004

This is really nice one, almost perfect front panel, a very good cabinet (refinished of course), and that wonderful quad performance that we love so much.  It also has our Differential Current Balance mod, and the Holy Grail quad alignment mod.

005

We already have two customers interested in this unit, so it will probably go very quickly.  We don’t have another 9001 series unit in the For Sale queue, it’s getting harder and harder for us to find them.  I suppose eventually they will get scarce, and then we’ll all be happy to have one.

006

Complete recap, 174 electrolytic capacitors changed out for new
Audio grade caps used in signal path
The big power supply caps have been increased from 10,000uf to 15,000uf, giving a total of 60,000uf.

007
A 12uf Poly cap was added across the supply, making it very stiff, even at high frequencies.
A 25v regulator was added to the quad processing board supply, for safety, in case of AC line problems.
All fusible resistors have been replaced.
The amp driver boards have received our total rework, where we change over 34 parts on each board.

025
Our proprietary Differential Current Balance modification was done to the amp driver boards.  This modification increases sonic detail, imaging, and musicality, without affecting the Sansui tube like sound character.
The Holy Grail alignment and modification was done to the quad boards.
The 4 channel quad switching board was re-pinned, with wires through the board to traces top and bottom.
FM alignment was done, dial re-calibrated.
The front panel LED modification was done.
All controls were cleaned and lubed with Corrosion X, a treatment which lasts 7-10 years, much longer than the usual De Oxit.  De-oxit will usually require another treatment in  1-2 years.

018









Sansui 2000 Receiver  $475

Excellent condition Sansui 2000

Excellent condition Sansui 2000

Here is a completely restored by us receiver, from the early 70’s.  These units are actually quite sought after and have a really nice sound, with the early Sansui design amplifiers.  The FM is before all the decoding steps had been turned over to IC’s and so the FM is quite good, quite musical.

008

The amplifiers in this are of the capacitive output type.  Sansui perfected this design and brought it to the highest level of performance of any manufacture.  The output capacitors were large for the time, 1500uf, but we increase them to 10,000uf, which is a big improvement.

009

Justin originally built this for his own use, but then happened upon a 9090, which he rebuilt and is now in his living room.

011

A very nice early Sansui.

010





Fisher X202-C  $1225 – sold

I restored this a couple years ago and used it some in a home theatre setup.  It didn’t quite have enough power with the inefficient speakers I was using, so it sat for while.  It’s a very nice piece of Fisher gear.

The last of the Fisher integrateds. Great sound, 35 wpc, very flexible with lots of inputs. That Fisher sound in spades.

The last of the Fisher integrateds. Great sound, 35 wpc, very flexible with lots of inputs. That Fisher sound in spades.

Originally it didn’t have a cabinet and I eventually found one in so-so condition on ebay.  Think of buying it as with no cabinet but a fair one thrown in as a bonus.  I actually like the way it looks in this rustic old cabinet.  With the almost perfect front panel, it has an authentic look about it.  The top metal screen insert is missing.

It has a new matched quad set of EH 7591’s.  These tubes require a little less grid voltage, so the grid resistors have have been changed accordingly.  I also added 10 ohm, 1% resistors between the cathodes and ground, which makes setting bias extremely easy and accurate, with a voltmeter.  The resistors also act as fuses if something should go wrong, preventing the 7591’s from going to a red plate condition and destroying themselves.

There are 2 potentiometers for bias and 2 for bias balance.  The bias is set a little less than factory spec at 19ma, things run a little cooler that way, with very little degradation in audio quality.

The knobs have brass tops and be kept shiny with a little brass polish applied from time to time.  The bezel around the front panel responds the same way.  Simple and elegant styling, a trait of the Fisher mark.

A thermistor, or inrush current limiter, has been added on the AC line, which acts to improve tube heater life to almost infinite, or so I have been told.  It makes sense, as the heater gets to warm up slowly, over a few seconds time, thus not experiencing thermal shock.

In all a very nice sounding Fisher integrated, the last of the line.  It has that clear, shimmering tube sound with excellent detail, imaging, and complete lack of listening fatigue.  If this is what you want, you won’t go wrong with this little amp.

009



Chassis if very clean.

Original power supply can capacitors are still in place, giving a very original look.  Replacements were added under the chassis, there was plenty of room.



























019





021

Original can caps left on chassis top. Replacements added underneath, with plenty of room. Maintains original look.

The power supply replacements are the blue caps, added underneath, with plenty of room. Maintains original look.















016

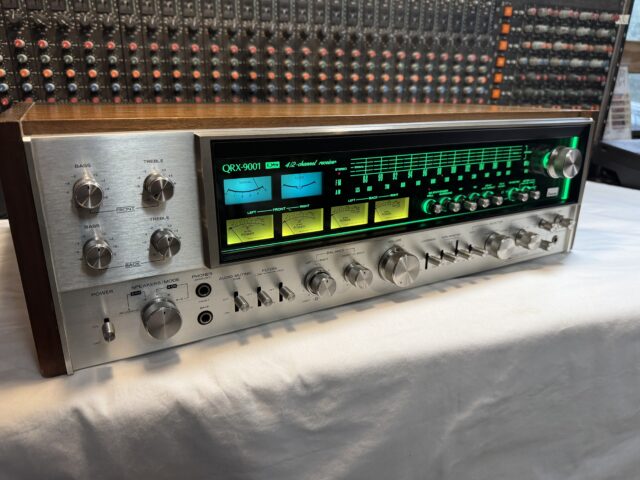

QRX9001   $1875 — Sold

Another very excellent 9001 that we just restored in our shop.  It has everything that we normally do to these units, including the Differential Current Balance modification.  This one has really nice wood grain in the cabinet and, of course, has been refinished at Gabe’s shop.

Another fine example. Green LED front panel.

Another fine example. Green LED front panel.



015



019



Very nice cabinet.

Very nice cabinet.



008























The naked inside view. No corrosion.

The naked inside view. No corrosion.



This 9001 has received all our upgrades and restoration.

Complete recap, 174 electrolytic capacitors changed out for new
Audio grade caps used in signal path
The big power supply caps have been increased from 10,000uf to 15,000uf, giving a total of 60,000uf.
A 12uf Poly cap was added across the supply, making it very stiff, even at high frequencies.
A 25v regulator was added to the quad processing board supply, for safety, in case of AC line problems.
All fusible resistors have been replaced.
The amp driver boards have received our total rework, where we change over 34 parts on each board.
Our proprietary Differential Current Balance modification was done to the amp driver boards.  This modification increases sonic detail, imaging, and musicality, without affecting the Sansui tube like sound character.
The Holy Grail alignment and modification was done to the quad boards.
The 4 channel quad switching board was re-pinned, with wires through the board to traces top and bottom.
FM alignment was done, dial re-calibrated.
The front panel LED modification was done.
All controls were cleaned and lubed with Corrosion X, a treatment which lasts 7-10 years, much longer than the usual De Oxit.  De-oxit will usually require another treatment in  1-2 years.

Please email or call if you are interested in this receiver.

Sansui QRX999,   $2175 –sold

Here is another QRX999 in excellent condition.  The QRX999 is identical to the 9001 except for the color of the front panel and some of the knobs.  This unit is from Arizona, and so has almost no internal corrosion.  It has all the upgrades and improvements we do to all of these units, and looks very nice with its refinished cabinet.

012

011



016



017



013



014

015















018

025

The 10,000uf power supply caps have been changed for 15,000uf, for a total of 60,000uf!  It tightens up the bass a little.

The left edge of the front panel has two scratches, that are very hard to see and photograph.  Consequently we are charging less than we normally do for a QRX999.  You have to look hard to see the scratches, but they are there.

This QRX999 has had all our work done to it.  Complete recap/restore, complete rebuild of the power output boards, 25v regulator added, blend resistors removed from quad boards and Holy Grail alignment, everything set to factory specs, our Differential Current Balance modification, and all the testing we normally do to these things.  Plus, of course, a cabinet refinish.

Complete recap, 174 electrolytic capacitors changed out for new.
Audio grade caps used in signal path
The big power supply caps have been increased from 10,000uf to 15,000uf, giving a total of 60,000uf.
A 12uf Poly cap was added across the supply, making it very stiff, even at high frequencies.
A 25v regulator was added to the quad processing board supply, for safety, in case of AC line problems.
All fusible resistors have been replaced.
The amp driver boards have received our total rework, where we change over 34 parts on each board.
Our proprietary Differential Current Balance modification was done to the amp driver boards.  This modification increases sonic detail, imaging, and musicality, without affecting the Sansui tube like sound character.
The Holy Grail alignment and modification was done to the quad boards.
The 4 channel quad switching board was re-pinned, with wires through the board to traces top and bottom.
FM alignment was done, dial re-calibrated.
The front panel LED modification was done.
All controls were cleaned and lubed with Corrosion X, a treatment which lasts much longer than the usual De Oxit, 7-10 years,



For Sale 9090db in Very Good condition  $1125 –sold

001



Here’s a 9090db that we have completely restored.  Looks very nice indeed.  The 9090db produces very high power, and can easily overpower some lower rated speakers.  It can also fill a room with high level audio if that is what you desire.



003



004

We have had the cabinet refinished, and overall it looks very good.

More pictures.

005



007



008



009



026

This 9090db has, of course, had everything we do to them- done.  It has a complete recap, a complete rebuild of the power amp boards, and this one has all new output transistors.  Most 9090 units have had one or more output devices changed during their lifetime.  This one had several replaced.  Everything was working ok, but we could tell that the Tr’s had not been replaced in matched pairs, and so we put in 8 new ones, 4 matched pairs.  Otherwise, it would not hold up the way it should to high power operation.

The dolby section has been bypassed, with the tape ins and outs brought back into the circuitry so you can  use them as inputs.  It also has our Differential Current Balance modification, for that extra sweet and musical sound.





 For Sale,  QRX8001 in Excellent condition  $1675 –sold

This unit belongs to a long time client of ours in Hawaii.  It is a QRX8001, which for those who don’t know is pretty much the same as the 9001 except for a couple points.  It does not have the dolby circuitry, which is a blessing.  It also has less power out than the 9001 (1.5 db less), about 38 watts per channel instead of 65.  Otherwise it has every other feature and circuit and processing type that the 9001 has.

This particular unit also comes with our QBL modification, and a very nice QBL unit.  You have to use one of these to appreciate it.   They make quad so much fun!  I don’t know what kind of music you may prefer, but I got so picky over the years, that for non-encoded music, using the synthesizer mode, I would adjust the front and rear balance for almost every song.  With the QBL you can do that in about a second, and you don’t have to get up.

This one has a few dings on the cabinet, but could easily be refinished.  Photos always make the wood cabinets look worse than they do in person.

Of course this unit has virtually everything that we do to these units:

Complete recap and restoration

Holy Grail quad alignment

Differential Current Balance

Added 25v regulator to protect the quad boards

LED front panel

And so on.  If it is described on our site here, this unit has it.

This is unusual for us, but we will simply give you Kurt’s information and how to get in touch with him.  You contact him and make arrangements.  The price Kurt is asking is $1675, which is a very good price.  We went back and forth and I thought it should be more.  He also wants to give anyone who buys it a $75 shipping rebate if you don’t happen to live in Hawaii.  It costs a little more to ship in and out of paradise.  LOL

Contact Kurt at Indianrider2 at gmail dot com.  That’s coded of course, from my original 1930’s decoder ring, but I think you can figure it out.

So here’s some pictures.

Dark walnut

Front







kurt5.com kurt6.com kurt7.com kurt8.com

IMG_1112

Top1

We Buy Sansuis in almost any condition!

We have many more units for sale, than actually make it to this page.  Most of the time, especially with the 9001’s, we have one or two that we are working on, and will be for sale.  People email us or call and the units get sold before we finish, and before they get put up here.  So, if you want one of these Sansuis, you might want to contact us and see what will be available.  With a small deposit, we will make the next one yours, and when we send you pictures, if you don’t like the pictures, you can change your mind.



For Sale QRX999 in like new condition, with QBL100 remote control   $2925 – SOLD

010

Here is another of our most very excellent restorations.  This belongs to a good customer of ours, and he actually has two units like this, restored by us.  He has decided to sell one of them, and asked us to sell it for him, and so we offer this for sale.

008

This restoration started with an almost perfect condition QRX999.  Before the restoration was done, the owner found an unused QBL100, new in box, and we added the QBL modification to this unit.  The extra wires you see in the top view are for the QBL circuit.  This unit is impeccable, both in looks and in function.  We have done the following to this QRX999…

Coomplete recap, 174 electrolytic capacitors changed out for new.
Audio grade caps used in signal path
The big power supply caps have been increased from 10,000uf to 15,000uf, giving a total of 60,000uf.
A 12uf Poly cap was added across the supply, making it very stiff, even at high frequencies.
A 25v regulator was addedd to the quad processing board supply, for safety, in case of AC line problems.
All fusible resistors have been replaced.
The amp driver boards have recieved our total rework, where we change over 34 parts on each board.
Our proprietary Differential Current Balance modification was done to the amp driver boards.  This modification increases sonic detail, imaging, and musicality, without affecting the Sansui tube like sound character.
The Holy Grail alignment and modification was done to the quad boards.
The 4 channel quad switching board was re-pinned, with wires through the board to traces top and bottom.
FM alignment was done, dial re-calibrated.
The QBL modification was done, with a jack on the back panel.  There is a shorting plug that give normal operation without the QBL.
The front panel LED modification was done.
All controls were cleaned and lubed with Corrosion X, a treatment which lasts much longer than the usual De Oxit, 7-10 years,

The QBL100 was opened up and its pots cleaned and treated with Corrosion X.

014



015

007



This unit can present a stunning sound field, with more of the live feeling of being there, than practically any other system.  A modern day top of the line, $25,000 system cannot match one of these with a set of good speakers and source gear.  Our customers repeatedly tell us of comparisons done by friends who might have such a system.  This unit was the pinnacle of the whole Quad revolution in the 70’s which unfortunately died an untimely death, due to corporate rivalries.  The QRX999 is the European version of the 9001, and is very sought after here in the USA.

019



017

This unit will be shipped in one of our heavy duty, 3 layer boxes, packed in 3″ of foam, all around.



For Sale!! Excellent condition 9001 — $1775 –Sold

Serial # 237040045

Here’s another one just through our shop.   This one has the gray anodized chassis, excellent condition.  It has everything that we offer, Diff Mod, LED front panel, Holy Grail quad alignment, etc. etc.  Here’s some pics…

016

018





019



020



021



014














For Sale!  Excellent condition 9001- $1775- sold

Here’s another one we just put through our shop.  This one has the gold anodized chassis, and the “if it don’t work, turn the dolby off” tag on the dolby switch.  It’s funny how people always ask about that tag.  If a unit comes in with it, we keep it with that unit.

Some pictures

010



011



012



013



014

Of course, we’ve done all our work on it.  It has–

Complete recap with signal path caps replaced with Nichicon UKW and others replaced with various brands.

The big smoothing power supply caps have been replace with switching power supply types of 15,000uf each.  These are much heavier duty and rated for 50% more hours of usage than the originals.  You’ll notice that we have now found a source for the right size clamps for these caps.  I gave up looking long ago, but just happened upon a site in Canada that sells them.  Looks much nicer in my opinion.

A 25v regulator has been added to the power supply to protect the quad boards.

The blend resistors have been removed from the quad boards and the Holy Grail Alignment done.

All fusible resistors have been changed out for new metal film types.

The output driver boards have been completely reworked, all fusible resistors changed for metal film types, selected transistors changed out and our Diff Mod added.  In all, we replace 32 parts on each output driver board.  It is a decided upgrade, with most people noticing the difference immediately.  It’s more detailed and more musical sounding.

All pots and switches have been thoroughly cleaned and lubed.

All settings, dolby, offset, bias, etc. have been recalibrated.

FM tuner has been aligned

We have added LEDs to the tuning dial illumination, which is hard to capture in a photo

If you’re interested in this unit give me a call, or email.  Thanks for looking.




For sale!!  1 excellent condition 9001–Sold

We get calls from people wondering why we do not have more 9001 models up for sale on this page.  Sorry to say, but the demand has gotten to the point that when we acquire and then completely restore a 9001 for sale, it hardly ever makes it here, to this page.  People contact us and those units are sold before we finish them.  If you are interested in one of these, please contact us.

People also ask where we get these units that we sell here.  Usually they come from customers who send us a 9001 for restoration.  It is quite common for people to own more than one of these, as many as 3-4 is not unusual.  Once they get one restored, and they find out how reliable it is, one of their back up units often gets sold to us.  That’s why these units are in such good condition, they come from collectors.

Occasionally, someone will just contact us with one they got at a 2nd hand store, or similar.  We just got one in recently where a teenager bought one from a local thrift store, and when he found out the cost to get it working, he sold it to us.  It’s rare.  And it was in incredible condition.  We all should be so lucky as to find one of these at a thrift store for $25-50.  And yes, we gave him a fair price, and… he was quite happy with his $300 profit (700% markup) on the deal.



QRX 9001 Ser #236100112    Excellent condition $1775

We haven’t had a 9001 for sale here for quite some time.  This one is in very excellent condition.  The front panel is almost perfect, with a couple of the knobs having slight blems on the knurling.  The cabinet is at Gabe’s shop, getting refinished.  As soon as we get it back we will take additional pictures and put them up.

It has some slight discoloration on parts of the chassis from corrosion, you have to look to see it, though.   The output transistors are original, and this unit looks to be very low hours since new.  We can tell by the condition of the front panel lamps, which were still nice and clear on this one.

006



007



009



010



014



035



037

Of course, we’ve done all our work on it.  It has–

Complete recap with signal path caps replaced with Nichicon UKW and others replaced with various brands.

The big smoothing power supply caps have been replace with switching power supply types of 15,000uf each.  These are much heavier duty and rated for 50% more hours of usage than the originals.  You’ll notice that we have now found a source for the right size clamps for these caps.  I gave up looking long ago, but just happened upon a site in Canada that sells them.  Looks much nicer in my opinion.

A 25v regulator has been added to the power supply to protect the quad boards.

The blend resistors have been removed from the quad boards and the Holy Grail Alignment done.

All fusible resistors have been changed out for new metal film types.

The output driver boards have been completely reworked, all fusible resistors changed for metal film types, selected transistors changed out and our Diff Mod added.  In all, we replace 32 parts on each output driver board.  It is a decided upgrade, with most people noticing the difference immediately.  It’s more detailed and more musical sounding.

All pots and switches have been thoroughly cleaned and lubed.

All settings, dolby, offset, bias, etc. have been recalibrated.

FM tuner has been aligned

We have added LEDs to the tuning dial illumination, which is hard to capture in a photo

When we get the cabinet back from the refinish shop, we will put up some more and better pictures.











QRX9001 Ser #236110621  Excellent condition  $1775 –Sold





This is another 9001 that has received our complete Recap and  Restore, with the Diff Mod, LED front panel, and cabinet refinish from Gabe’s shop.  It is excellent in every way, and is one of the nicer ones to go through our shop.

Complete recap with signal path caps replaced with Nichicon UKW and others replaced with various brands.

The big smoothing power supply caps have been replace with switching power supply types of 15,000uf each, giving a total of 60,000uf.  These are much heavier duty and rated for 50% more hours of usage than standard.

A polypropylene audio grade film cap of 12uf has been added across the big smoothing caps for added stiffnes at high frequencies.

A 25v regulator has been added to the power supply to protect the quad boards.

The blend resistors have been removed from the quad boards and the Holy Grail Alignment done.

All fusible resistors on have been changed out for new metal film types.

The output driver boards have been completely reworked with our Diff Mod added.

All pots and switches have been thoroughly cleaned and lubed.

All settings, dolby, offset, bias, etc. have been re-calibrated.

FM tuner has been aligned

If you’d like to discuss this unit, please call or email.  Thanks for looking.
















Damaged QRX8001  Ser #236110153  damaged in shipping  $1075 — Sold

Update:  We have gone ahead and refinished this cabinet.  The pictures now show it with the cabinet refinished by Gabe.

If you follow our shop action page you will remember that a QRX8001 was damaged by UPS in shipping about 6 months ago.  The box was dropped on the rear left corner, severely caving in the rear panel.  Somehow, the wood cabinet was not damaged at all.  We have finally gotten the unit back, on an insurance settlement.  We have straightened the rear panel. . . . as best we can.  If you look at it carefully, it is very obvious that it has been bent.  There were a couple problems inside that we also repaired.  It is now in perfect operating condition, and from every view except the rear is in excellent shape.  The only blemish is a small scratch between the speaker selector knob and the power switch.  It doesn’t show up well in a picture.

As far as the electronics are concerned it has the normal $1425 worth of work that we do on it, a complete recap/restore and all the mods.

Complete recap w/ Nichicon UKW in signal path, various others for power supply

Big smoothing caps are replaced with 18,000uf switching power supply units, giving a total of 36,000uf, almost as much as the 9001 (40,000).  Stock is two 15,000uf caps.

A 25v regulator has been added to protect the fragile quad boards.

The troublesome 4 ch board (double sided) has been pinned and soldered.

Blend resistors have been removed from the quad boards, and the Holy Grail alignment done.

The output boards have the Diff Mod, along with all fusible resistors replaced with metal film types, and a careful balance of differential currents.  Also a slight reduction in gain, which lowers the noise floor and reduces distortion.

All adjustments carefully set, bias, offset, quad, etc.

The front panel has green LED lighting, giving it “That Look” that everyone seems to like so much.

Aside from the bent rear panel, we will warrant this just like we do all our other restored units, 90 days- you pay shipping to us- we pay return shipping.

Really, once you install this unit on a shelf, you will forget about the rear panel.  Here’s a couple pictures of the damage after we straightened it.

And here are some more pictures of the unit, ready to go.

This is a good opportunity to experience the full on QRX quad sound for considerably less dollars.  The 8001 has a little less power, about 1.5 db less, which, honestly is hardly noticeable.  And no dolby (a huge loss, LOL).  And of course it goes into 2X power stereo mode if you want that 200 watt per channel amp feeling!

QRX9001  Ser #236110003   $1800  -sold

This is a very nice example of the 9001.  It has very little corrosion on the chassis and the front panel is near perfect and cabinet is very nice.  This is a very low hour unit, with all original bulbs that have not darkened at all.  This unit came in with offsets and bias almost dead on spec, which is very unusual.  We can usually tell from marks on the case, screws and washers, and this one appears to have never been worked on.

Of course, we’ve done all our work on it.  It has–

Complete recap with signal path caps replaced with Nichicon UKW and others replaced with various brands.

The big smoothing power supply caps have been replace with switching power supply types of 12,000uf each.  These are much heavier duty and rated for 50% more hours of usage than standard.

A polypropylene audio grade film cap of 12uf has been added across the big smoothing caps for added stiffnes at high frequencies.

A 25v regulator has been added to the power supply to protect the quad boards.

The blend resistors have been removed from the quad boards and the Holy Grail Alignment done.

All fusible resistors on have been changed out for new metal film types.

The output driver boards have been completely reworked with our Diff Mod added.

All pots and switches have been thoroughly cleaned and lubed.

All settings, dolby, offset, bias, etc. have been recalibrated.

FM tuner has been aligned

Here’s a few more pictures.

The cabinet has not been refinished.  It is original and has a couple marks on it, but is in good shape.   The round circle on the left side appears to be a foot mark from something sitting on top of it.  All in all, an excellent unit with sound to match.


We’ve been asked quite a few times why we never have any amps up for sale.  We’ve had about 5 different AU amps in the shop that were planned for restoration and sale.  Justin finally just took the bull by the horns and started on a couple of them, both AU999’s

Here’s the first one, Ser. #231040653   AU999  $475  -sold

This AU999 is in excellent condition, no scratches or indents anywhere.  There are a couple nicks on the front panel edges, but they are two small to be seen in a photo.  You can feel them though.

We have done the following to this unit:

Changed out all the electrolytic capacitors, Nichicon UKW in the signal path, various others for power supply functions.

Doubled the size of the big smoothing caps, from 4700ufd each to 10,000ufd each.  To accomodate this, and not blow the bridge rectifier at startup, the bridge rectifier has been changed to a 35amp 400v unit.  Completely overkill, but will never cause a problem. A lot of people increase the size of these caps in the early AU amps, but if the rectifier is not changed, trouble comes later.

The output amplifier stage has gotten our Diff Mod, for some reason making a huge change in the sound of this unit.  Not that it wasn’t good before, it is just utterly transparent after the mod.

We have chosen to leave in the “flying saucer” transistors that are in this unit.  A lot of rebuilders will change them out as a matter of course.  They all seem to be in excellent shape, and the sound was just so good, I didn’t want to mess with it.  This unit has a slightly warmer sound than the AU9500, or you could say, the 9500 is slightly more neutral.    I actually prefer the sound of this 999 over the 9500, but the 9500 does have almost twice as much power.

My other impression of this amp is that it has a fantastic low end.  It sounds like a big 250wpc dc amp, up to the limits of its power capability.  It does have plenty, at least enough for me, and will drive my test speakers, a pair of B&W 802-S2 speakers to almost painful levels.  It basically has the same power capability as the 9001.


If you’re interested in this amp, email us, or give us a call.  Be glad to discuss it.


Comments are closed.
